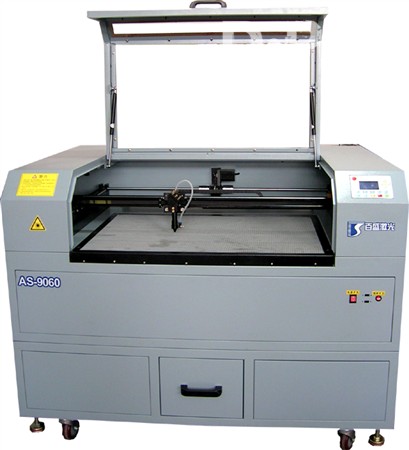

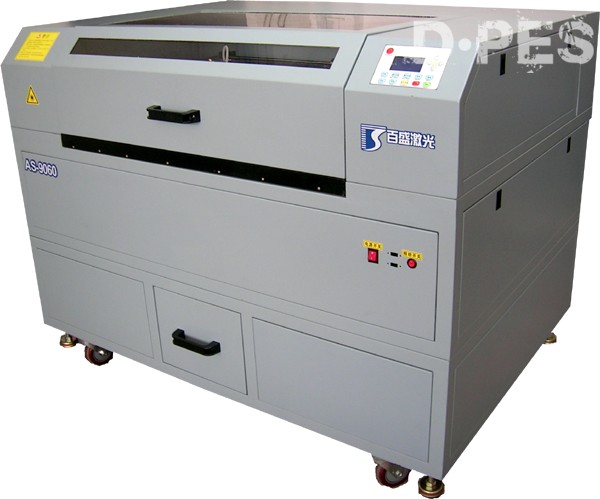

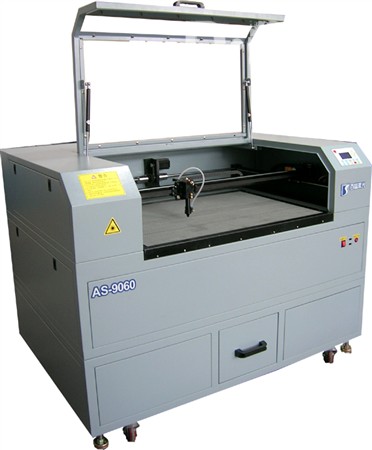

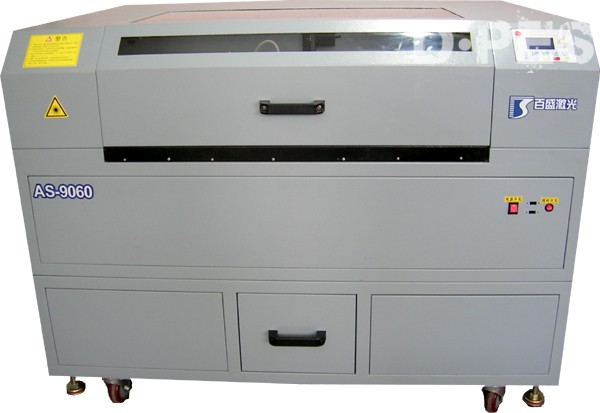

Product Name:High-speed laser engraving cutting machine AS-9060

Product Details:
Model:
AS-9060
Select Payment and Shipping Terms:
Min. Order Quantity:
0
Place of Origin:
Min. Order:
FOB Price:
0.00-0.00 /
Shipping Terms:
Shippment Port:
Payment Terms:
Show Buyers your Ability to Supply:
Production Capacity:
0 per Time
Delivery Time:
Packaging:

Detailed Product Description:



TYPE

AS-9060

Engraving area

900×600mm

Engraving speef

0-84000mm/min(stepless speed regulating)

Laser power

60w

Resolution raltio

0.025mm

Minimum shaping character

Chinese Character2mm/letter1mm

Resetting positioning accuracy

±0.01mm

Power supply

AC220V±10%,50HZ

Gross power

1100w

Operating temperature

0-45

Operating humidity

5%-95%(free of condensed water)

Graphic format supported

BMPGIFJPEGPCXTGATIFFPLTCDRDWGDXF

Net weight

150KG

Dimension

1500×1100×940mm



Adopt the internationally advanced DSP control technology, it is the pioneer to fast continuously cut curvingly and shortcut processing pathway optimizing function, accordingly increase greatly the efficiency. It automatically equalize the diminishing of light during the whole operating to ensure the same cutting effect in different area. High-speed cutting control software and buffer function in high-speed movement can improve production efficiency.

According to the suggestion of users, varying with different processing objects,supply professional fittings for various processing cases. Such as aluminum alloy celluar baseboard with various diameters, metallic grills with different clearances, and negative pressure absorption device of flexible materials, meeting the industrial requirements better.

It is the first domestic product that uses USB port to transmit data, equipped with large-capacity internal memory, greatly improving working speed and efficiency.
